ALC-101

Arc length controller

The ALC-101 arc length controller is made of an upright type of welding equipment that adds arc voltage control to allow automatic control during presets and continuous welding.

    Three Features of ALC- 101
  • arc voltage sensing
    - The arc length controller measures the arc voltage and compares it to the value entered by the operator.
  • Touch Retract
    - Electronic Touch Retract performs a set arc gap (Gap).
  • Sequential Control
    - In addition to arc voltage control, the ALC-101 uses five timers to control the welding sequence.
    - Controls the supply of wires and the start, movement, and stop of the welding power supply

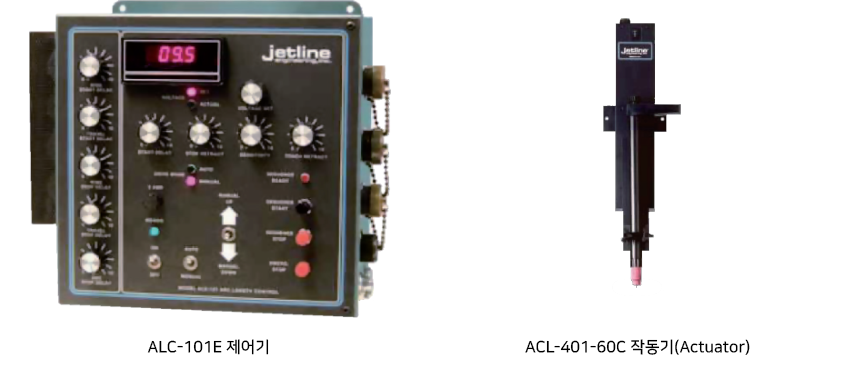

ALC-101E Controller

The controller automatically controls the arc voltage and has a 10-Turn potentiometer and a large, inputable digital display of the arc voltage. You can also set the start of the arc gap, bolt detection delay, sensitivity and stop return distance

  • - Transfer start delay (0 to 10 seconds)
  • - Transfer stop delay time (0 to 10 seconds)
  • - Wire delivery start delay (0 to 10 seconds)
  • - Wire transfer stop delay (0 to 10 seconds)
  • - Arc stop delay (0 to 10 seconds)

ALC-401-60C Actuator

  • - Constructed of hard servo drive motor slides
  • - Ball screw slides combined with two rigid, round shafts with recirculating ball bushing
  • - The entire equipment is wrapped in metal and loaded from the center of the torch up to 40 lbs (18 kg).
  • - Diversion Torch Holder for mounting at the end of the slide
  • - Replaceable small actuators can be used by selecting 25mm (1") or 100mm (4") Stroke.
