Used for GTAW (TIG) or plasma (PAW) welding, the Jetline Arc length control maintains the pre-set arc length through arc voltage control.

• Continuous penetration into welds on uneven surfaces
• Defines weld voltage for correct and repetitive procedures
• Easy to install in multiple locations
• Simplify operator operation
• Fast welding speed
• Compensation for electrode rod corrosion
• Automatic setting of the arc gap at startup

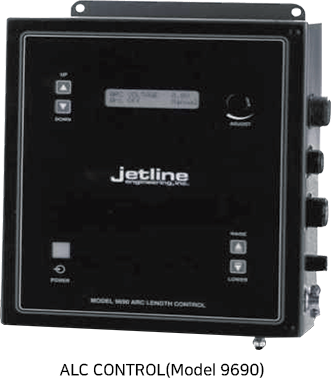

9690 Controller - The Brains

9690 controllers use Intel microprocessors that are proven in a welding environment, while Jetline's controllers produce the highest quality products of the latest technology.

• Backlit, convenient 2-line LCD display with no relation to internal light conditions
• Showing two lines information on LCD. Each line can be up to 20 characters long
• Change settings and range by entering with a push arrow and switch that is more accurate than dial
• Polycarbonate Overlay Use built-in touchpad instead of conventional push buttons
• Electronic Touch Retract (the weld bar touches the base material and Retract automatically presets the arc gap)
  - Operators do not need to measure distance with gauges
• Retract start of the torch may take up to 99 seconds, as the arc length is set to operate the welder, pre-purge initiation, up-slope, weld-wire delivery, and oscillating operation.
