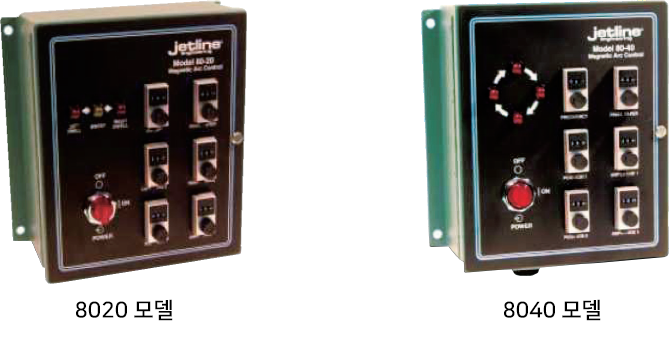

8020 / 8040

Magnetic arc control

The magnetic arc control unit of the Cyclomatic series is microprocessor controlled, providing high safety and precision performance. The device can use two new types of microprocessor controls.

  • Magnetic arc controls provide heat distribution selected, undercut protection, large volume of air-pore removal, sufficient penetration, even weld puddle and bead geometry.
  • Create a magnetic field around the arc with a magnetic probe (Probe) to stabilize the arc using the arc's correct positioning and oscillating techniques.
  • Magnetic arc devices may be used with automatic or semi-automatic welding torches.
  • Magnetic arc control with arc oscillation and position control allows for the best welding quality, even if metal is cannot be welded.
* 8020 models are compatible with four existing models and a new product, the 4600 Probe.
* 8040 models use dual-axis control and use 4613A Probe.

Product specification

Control device 8020 Model 8040 Model
Sweep Frequency Oscaling 0 to 30 times per second Oscaling 0 to 30 times per second
Sweep Amplitude (Sweep Amplitude) Proportional to arc length (approximately 1:1 ratio) Independent adjustment for each axis;
Proportional to arc length (approximately 1:1 ratio)
Arc Position (Arc Position) Proportional to arc length (approximately 1:1 ratio) Independent adjustment for each axis;
Proportional to arc length (approximately 1:1 ratio)
Dwell Ratio (Dwell Ratio) 1:1 to 100:1 in terms of eight areas of the weld seam N/A
Dwell Control (Dwell Control) Left/Right independently controlled N/A
Shaping (Shaping) N/A 1:1 to 100:1 on both axes, proportional to arc length (approximately 1:1). Vibration and elliptical patterns (Oscillatingand Elliptical Patterns)
Final Taper 0 to 15 seconds 0 to 15 seconds
Input Power (Input Power) 115/220 VAC, 50/60 Hz 115/220 VAC, 50/60 Hz
Cooling (Cooling) Air/convection Air/convection
Area (Dimensions) 248 X 102 X 300mm 248 X 102 X 300mm
Weight (Weight) 5.4kg (12lbs) 5.4kg(1lb)
