Seam Tracking Systems

Seam Tracking Systems

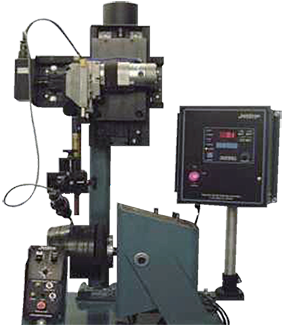

The seam Tracking Controller of the Cyclomatic series uses a microprocessor touch pad to hold the torch in the weld joint position. The system moves the joint position, vertical and horizontal movement of the torch in real time.

  • The controller shows the exact location of the weld joint with a combination of rigid slide design options and the latest performance Atmel® processor.
  • Compatible with all welding systems, it is easy and quick to install manifolds, site beams, tractors, positioners, turning rolls, and weld shelves without expensive brackets or interfaces.
  • Cyclomatic seam (seam) tracer is especially useful for high-capacity, accurate and delicate industries such as manufacturing, beam, construction assembly and pipe and tube manufacturing of tanks and pressure containers.

Characteristics

  • - Two models – Standard settings and program settings: 18 kg (40 lb) and 113 kg (250 lb) weight
  • - Positioning the correct torch in the weld joint to improve quality
  • - Applies to GMAW, FCAW, SAW
  • - Precision and accurate tracking below ±0.005" (0.1mm)
  • - 1 Pass of track is fillet and groove welding
  • - Controllers and slides are compatible with existing Cyclomatic models.
  • - Value – Programmed PTST models can be operated as a welding control system
  • - Performance – PTST models consist of step 8 sequentially with a welding program of 19.

Details

Model PTST40 3x3 & TST40 3x3 PTST250 & TST250(5x5 and 10x10)
Load Capacity 18kg 113kg
CG distance from faceplate 152mm 305mm
Standard Stroke 76mm 127mm or 254mm
Min.Envelope
All Standard. Stroke		 diameter 305mm diameter 431mm
Tracking Accuracy 0.13mm within 0.13mm within
Min. Cross Slide Slew Standard. Rate 0.6mm 0.6mm
Tracking Controls Manual Up/Down, Left/Right Up/Down, Left/Right
Tracking Controls Automatic Left/Right Sidetrack and Off Left/Right Sidetrack and Off
Input Power 115/220VAC,
1Phase, 50/60 Hz		 115/220VAC,
1Phase, 50/60 Hz
Cross Slide Cable Standard 3m Standard 3m
Omni-Guide Cable 1.2m 1.2m
Power Cable 1.8m 1.8m
Pendant Cable 3m 3m
Standard System Weight 36kg 48kg or 54kg
