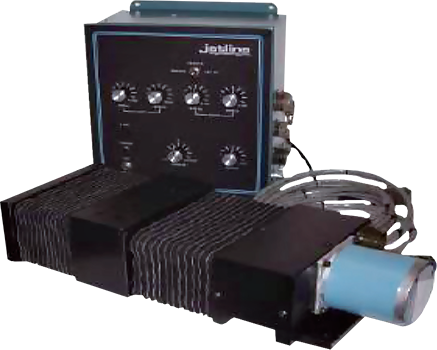

MO-150-5A

Mechanical welding oscillator

In arc welding, the welding system oscillates the arc according to various working requirements. When the welding process is automatic, waves or vibrations can have a good effect. Vibration of the arc helps with penetration of weld improvements and removes undercuts, most of which are used for overlay and cladding.

    The MO-150-5A machine oscillator is compatible with all welding processes.
  • Plasma Arc (PTA)
  • Gas Metal Arc Welding (GMAW/GMAWP)
  • Plasma arc welding (PAW)
  • Gas Tungsten Arc Welding (GTAW)
  • Flux core arc welding (FCAW)

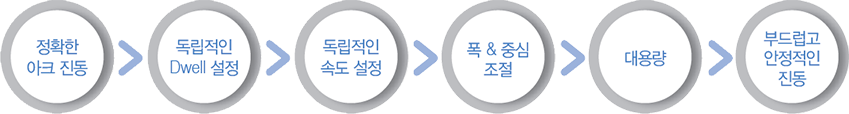

Characteristics

  • - MO-150-5A machine oscillating semitem is based on the 9200A analog controller
  • - Micro stepper operation of the controller is very precise and smooth.
  • - Use 10 micro steppers step by step

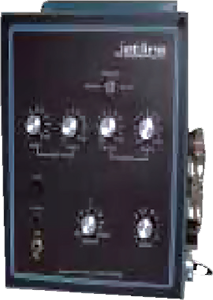

9200A Controller

The 9200A is an analog based controller that feedback potential differentials from slide parts for location reference. The controller is built for all arc welding processes and is a state-of-the-art electrical circuit, providing accurate vibration during the GTAW and PAW processes.

Characteristics

  • - Left speed control adjustment
  • - Left-hand dwell adjustment
  • - Adjust the oscillating interval
  • - Independent design
  • - Manual/remote/set switch selection
  • - Right speed control adjustment
  • - Adjust the right-hand dwell.
  • - Centralization
  • - Micro Stepper Drive

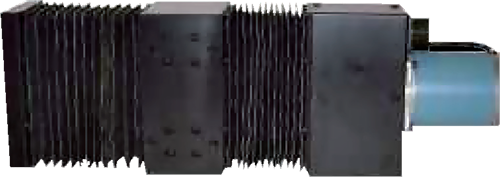

MO-150-101-5D Slide Assembly

    Slide assembly includes the following functions:
  • - Hard aluminium housing
  • - Sophisticated line guide rails
  • - Assembly ball nuts and ball screw drives
  • - Motor drives by high speed, high rotation phase
  • - Standard 9256A connection cable
    3 m (10 ft) long, slide to 9200A controller
  • - Bellow Covers

Details

- Controller (Control)

Input voltage frequency load weight size
120/240 VAC, 1Phase 50/60Hz 30lb (13.6kg) 13.5"H x 12.5"W x 7.19"D
343mm x 318mm x 183mm

- Slide (Slide)

weight capacity Machine Stroke Electric Stroke load weight Size
150 lb (68 kg) or less 2" (50 mm) Up to 4.875" (123mm) Up to 4.625" (117.5mm) 26lb (11.8kg) 4.75"H x 20.13 "W x 7"D
120mm x 511mm x 179mm
