A Study on the Analysis of Arcing Fillet Welding of SS 400+Inconel 625 (overlapping)

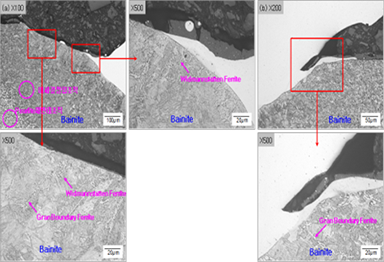

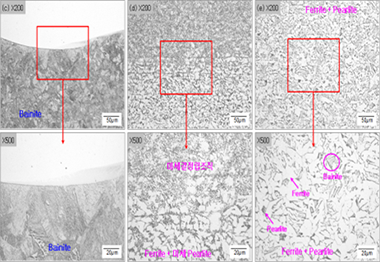

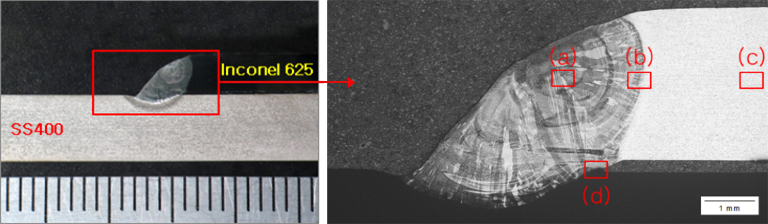

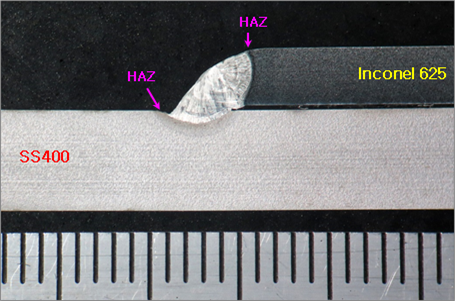

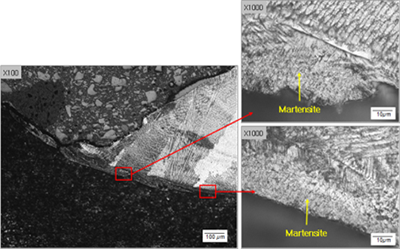

Fig. 61-arc overlap weld test piece, OM microstructure of SS 400

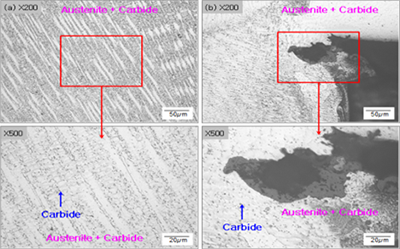

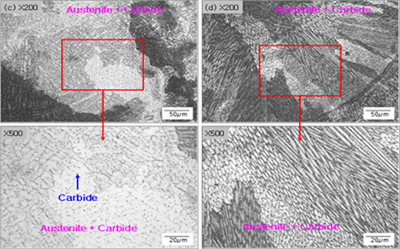

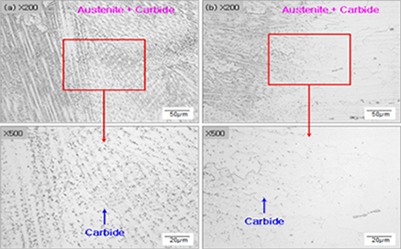

Fig. 62 OM micro-organization of Inconel 625 during the arc overlap welding test piece

Fig. OM micro-organization of Inconel 625 during 63-arc overlap welding test specimen

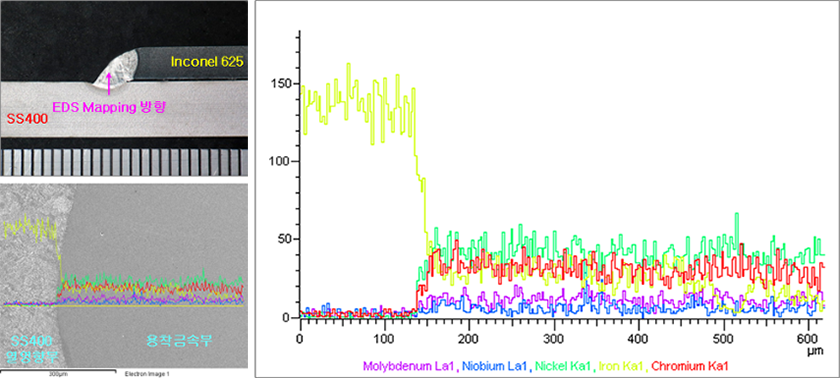

Fig. EDS Mapping Results of SS 400 Welded Joints in 64 Arc Welded Test Piece

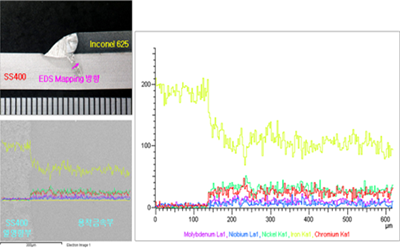

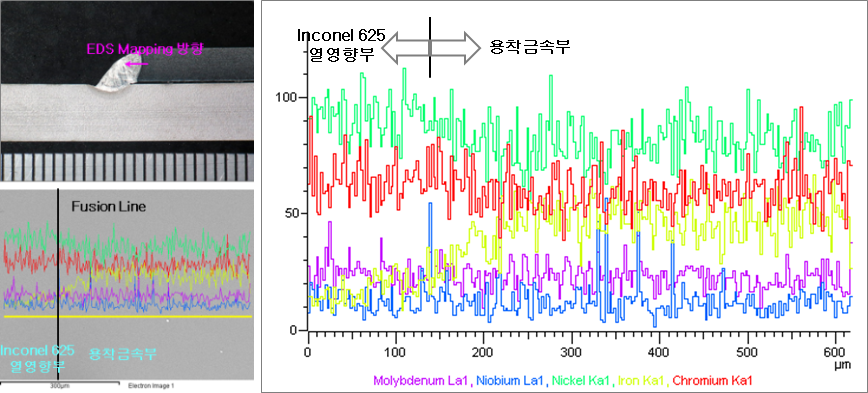

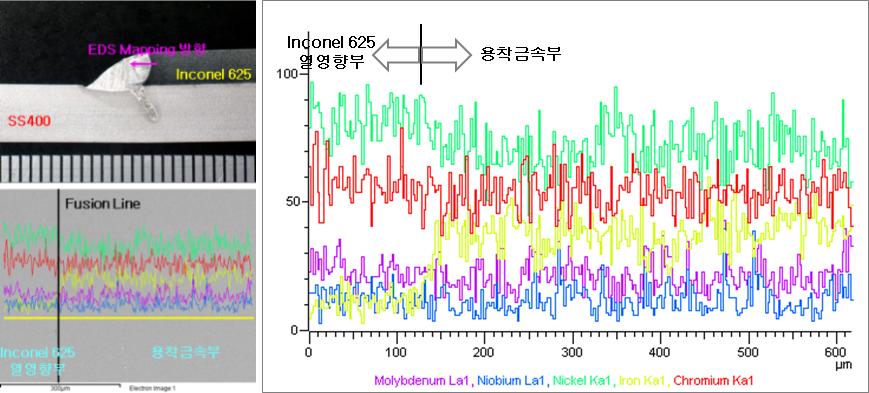

Fig. EDS Mapping Results of Inconel 625 Welded Joints in 65 Arc Welding Test Part

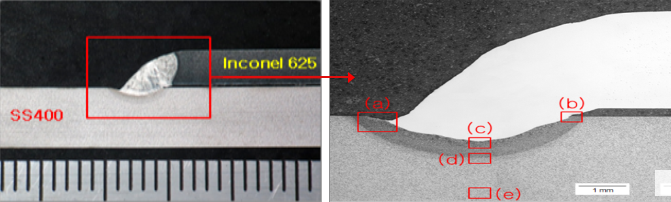

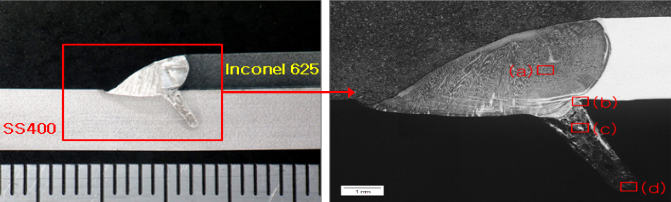

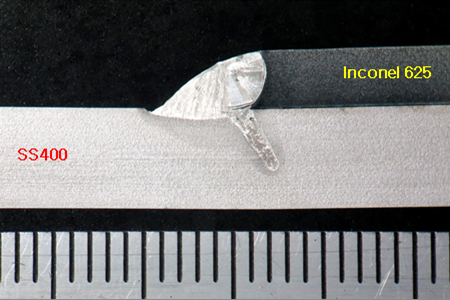

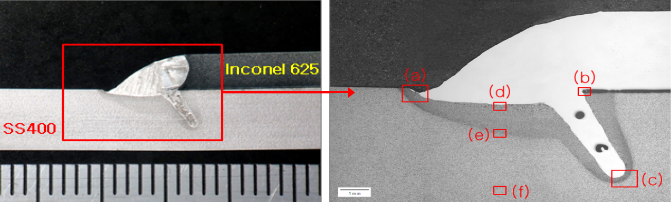

Fig. 66 Section Marking of Hybrid Welded Overlay Test Specimen

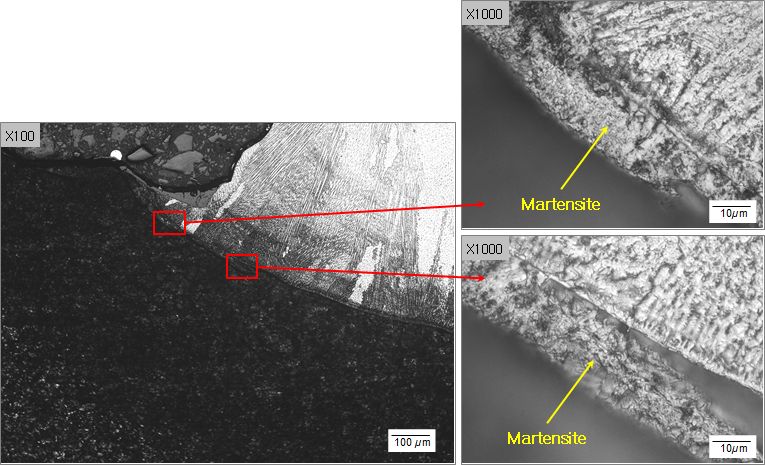

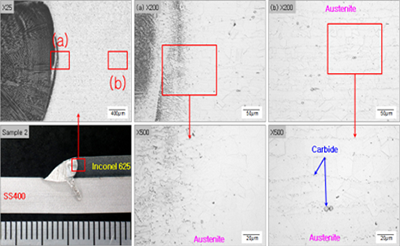

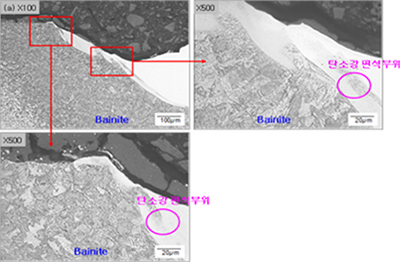

Fig. 67 SS 400 OM Fine Tissue of Hybrid Overlapping Welding Test Specimen

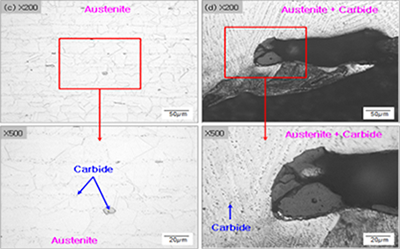

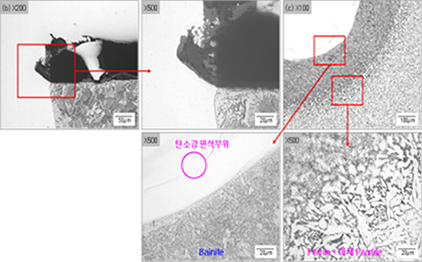

Fig. OM micro-organization of Inconel 625 during 68 Hybrid Overlapping Weld test specimen

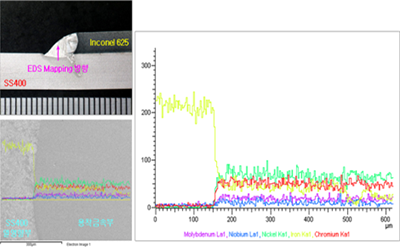

Fig. 69 Results of EDS Mapping from SS 400 to Welded Out of Section of Arc Welded Test Part

Fig. EDS Mapping Results of Inconel 625 to Welded Part of 70 Arc Welding Test Part
