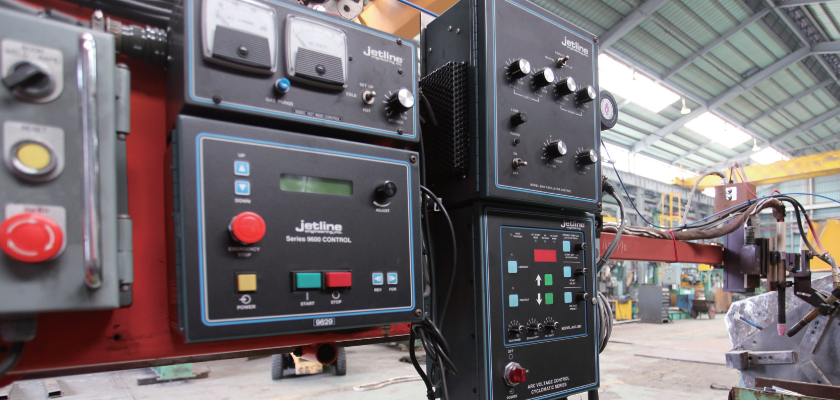

HTW 200

Characteristics

The HTW 200® welding system is used to achieve both high quality welding integrity and high-fidelity. Used as a GTAW or PAW welding, the welding wire is electrically preheated before welding. The welding system is used for joining and overlay welding of iron/non-ferrous alloys.

HTW 200
    -
  • Production of high quality welds in Hot Wire or Cold Wire mode
    • -
  • Limit heat input control
    • -
  • Produce weld speeds similar to GMAW
    • -
  • Easily adjust pre-set and weld delivery speed sequence
    • -
  • Controlling the delivery speed of less than ±1% of the error range -Transfer rate 12 to 600pm (30 to 1525 cpm)
    • -
  • Powerful four-roll delivery device
    • -
  • X-Y axis wire positioner
    • -
  • Provides a variety of torch designs that allow for Narrou Groove welding.
    • -
  • .045" &.062" (1.2 and 1.6mm) Using Welding Materials
    • -
  • 200 amps at 10 volts AC, 100% Duty Cycle, Variable Frequency
    • -
  • Current & Volt Meters Available
    • -
  • 0~15 Volt Open Circuit Voltage
    • -
  • Easy to change three-phase input power -380/415/460Volts, 50/60Hz
    • -
  • Hot Wire Power Source, Remote Control, Wire Transmission Motor, Wire Transmission, Wire Straightener, Weld Torch, Cable, and Related Hoses

Application

  • - High-quality nonferrous piping welding in shipbuilding and marine plants
  • - Defense industry, aerospace industry, high-speed railway, etc.
  • - Tubing, pressure vessel, tube welding
  • - Petrochemicals, fresh water facilities, nuclear power plants, etc.

Compare

welding process MIG TIG Cold Wire Tig Hot Wire Tig
Material Steel, STS, Al All metals All metals All metals
Thickness > 0.60mm > 0.25mm > 0.25mm > 10.00mm
welding speed Fast Slow Fast Fast
Adhesion volume(kg/h) 1.0~3.6 0.4~0.7 1.0~3.6 1.8~5.4
heat input volume(kJ/mm) 1.3~1.5 1.6~2.0 0.8~1.0 0.5~1.0
proficiency Low High Low Low
input cost Low High Low Low
Modification operation High Low Low Low
dilution rate(%) 20~35 2~10 2~10 2~10
