ESW 250

Characteristics

ESW 250
  • Power Source - SUB ARC DC 1250 CC/CV, DC 1000A @100%

    Miller's SAW power source is a three-phase power source that provides stable current and voltage at DC, creating optimal arc characteristics for SAW welding. The tradition and trust of Sub Arc DC series equipment also demonstrate its robustness in working processes such as arc gauzing.

  • Control Box - HDC 1500 DX

    The HDC 1500 Automatic Welding Controller has remote control and output control, along with AC or DC and CC/CV power sources, provides easy operation and reliability on the interface.

  • Connecting Cable Kit (for HDC 1500DX)

    Connection code length is 7.6m and provides 14PIN extension codes for 24V and 115V wire delivery.

  • Delivery Device - RAD 400

    The RAD 400 has a range of 0-3MPM wire transfer speeds per minute. It has a 115V motor and contains adapters of 2-1/2, 4-1/4, and 4-5/8 inch bolt hole specifications.

  • Flux Hopper (WITH VALVE, 11.3 kg)

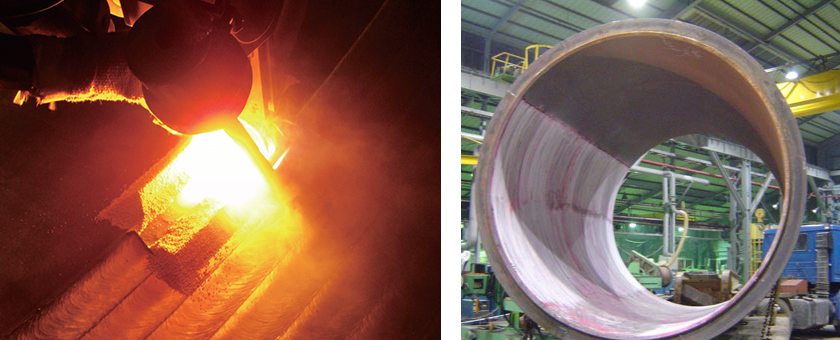

  • 10-inch inside cladding head

    0.5 x 30 mm ESW/SAW Strip Internal Clading Head

  • Water Cooling System - COOLMATE 4 - 115 VAC

    Water-cooled unit available up to 600A and operates at 115VAC. Best-in-class performance, with a plastic case with cast-iron handles to facilitate PORTABLE. It has about 15 liters of capacity.

  • Flux Automatic Supply (AIR COMPRESSED)

    A vacuum automatic flux supply with storage that can preheat and maintain flux up to 100°C, providing 205 litres of tank capacity.

  • flux recovery system
