Dear Sir

Re .a/m you are kindly requested to quote us your best competitive prices

Fob & CIF Alexandria port Egypt & delivery terms for the following:



Item

Qty

Pcs

Specification







Plates

Material to ASTM B171  uns no.C71500.

Latest Additions (S) Of ASTM Specifications (EQUIVELENT NOT CCEPTED)

-Inspection  Certificate EN10204/3.1

-all material shall be legibly marked with the following information.

  *manufacturer name or brand

  *ASTM/ASME designation (no. – Gr/TP)

  * heat no.

  * Dimensions

-Plate Material &Permissible Variation In Dimensions To Be Confirmed ASTM A20/A20M



1

2

PCS

SIZE :  3000 X 1000 X 10







Cladding plate

Latest Additions (S) Of ASTM Specifications

Material to  ASTM B432

 (ASTM A516 Gr 60 + 3 mm clad with B171  uns no.71500)



-Inspection  Certificate EN10204/3.1

-Material shall be free of injuries defects and have smooth clean surfaces.

All Welding Electrodes To Be Acc To AWS & ASME .

- all plate shall be Metallurgical Integrally And Continuously Bonded  100% ultrasonically test to ASME Code (WITH A578).

-all material shall be legibly marked with the following information.

  *manufacturer name or brand

  *ASTM/ASME designation (no. - Gr)

  * heat no.

  * Dimensions

- should be supplied in worthy package to avoid any distortion.

-Plate Material &Permissible Variation In Dimensions To Be Confirmed ASTM B432.

2

3

PCS

SIZE :  1000 X 3000 X (5+3)

3

1

PC

SIZE :  1000 X 3000 X (13+3)







Cladding plate

Latest Additions (S) Of ASTM Specifications

Material to  ASTM B432

 (ASTM A515 Gr 60 + 3 mm clad with B402  uns no C71500)



-Inspection  Certificate EN10204/3.1

-Material shall be free of injuries defects and have smooth clean surfaces.

All Welding Electrodes To Be Acc To AWS & ASME .

- all plate shall be Metallurgical Integrally And Continuously Bonded  100% ultrasonically test to ASME Code (WITH A578).

-all material shall be legibly marked with the following information.

  *manufacturer name or brand

  *ASTM/ASME designation (no. - Gr)

  * heat no.

  * Dimensions

- should be supplied in worthy package to avoid any distortion.

-Plate Material &Permissible Variation In Dimensions To Be Confirmed ASTM B402.

4

1

PC

SIZE :  1000 X 6000 X (10+3)







Nonstandard flanges

 Material acc to ASTM A266 GR2+3MM weld deposited

for 1st pass eni-1&other  ENI CU7



-Tolerances on dim. Shall confirm to TEMA class “R” unless otherwise specified

-All Material Latest Additions (S) L Acc To  ASME/ASTM (Equivalent Not Accepted)

Each flange  shall be legibly marked with the following :

-manufacture name

-heat no

-material (ASTM DESIGNATION&GRADE/TP)

Beveling Shall Be As Shown In Drawing.

5

2

PCS

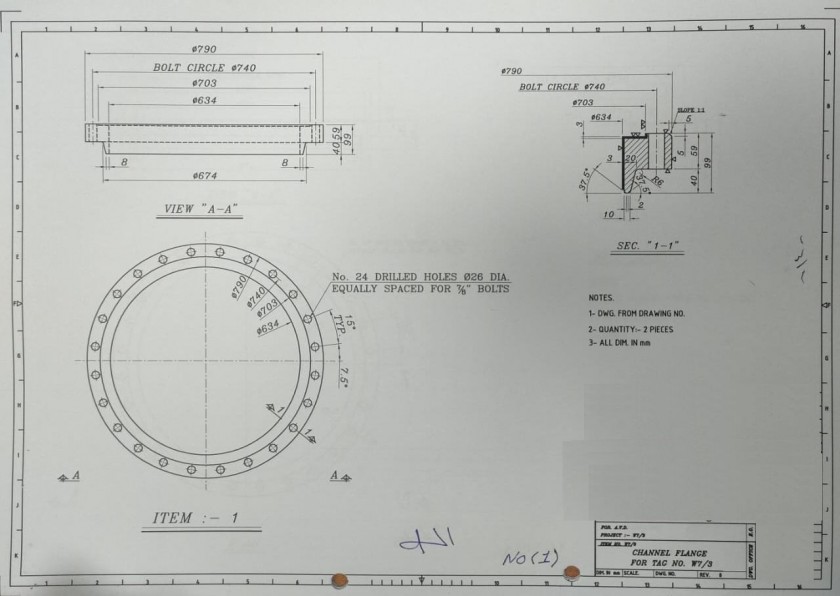

AS ATTACHED DRAWING  1 ( W-7)

6

1

PC

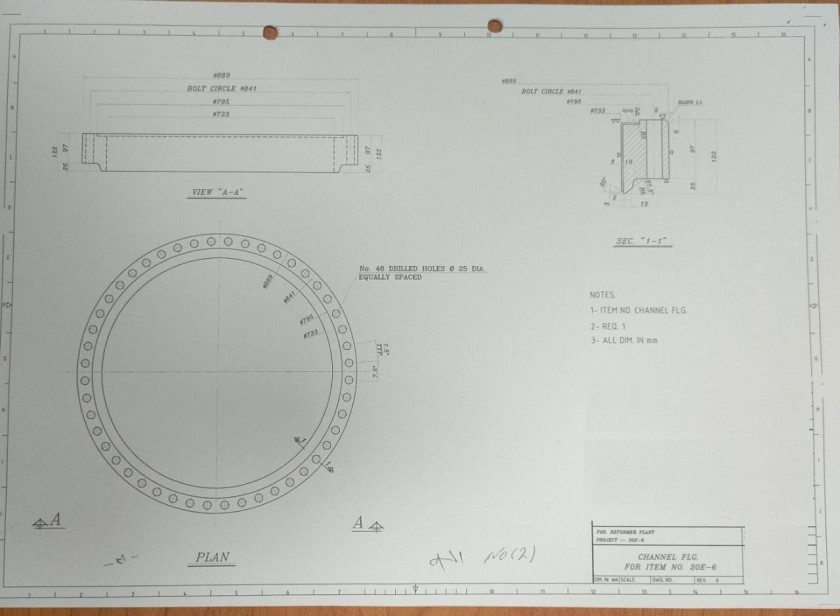

AS ATTACHED DRAWING  2 ( 20E-6)

7

1

PC

AS ATTACHED DRAWING  3 ( 20E-6)

8

2

PCS

AS ATTACHED DRAWING  4 ( W-5)

9

2

PCS

AS ATTACHED DRAWING  5 ( W-3)







NON-STANDARD FLANGE

Material : ACC TO ASTM A105 +3 MM  weld deposited for first passes eni-cu7

dimension ACC TO ANSI B16.5

- inspection certificate in accordance with EN 10204-3.1

-all material latest additions (S) acc to  ASME/ASTM (Equivalent Not Accepted)

Each flange  shall be legibly marked with the following :

-manufacture name

-heat no

- material (ASTM DESIGNATION&GRADE/TP).



10

1

PC

AS ATTACHED DRAWING  6  ( 22E-7)







W.N RAISED FACE FLANGE  Material acc to ASTM

A266 GR2+3MM weld deposited for 1st pass eni-1&other  ENI CU7



-Tolerances on dim. Shall confirm to TEMA class “R” unless otherwise specified

-All Material Latest Additions (S) L Acc To  ASME/ASTM (Equivalent Not Accepted)

Each flange  shall be legibly marked with the following :

-manufacture name

-heat no

-material (ASTM DESIGNATION&GRADE/TP)

BEVELING SHALL BE AS SHOWN IN DRAWING



11

4

PCS

SIZE : 6 “    SCH : 80  CLASS 150







W.N RAISED FACE FLANGE

Material : ACC TO ASTM A105 +3 MM  WELD DEPOSITED FOR FIRST PASSES ENI-CU7

DIEMNSION ACC TO ANSI B16.5

- inspection certificate in accordance with EN 10204-3.1

-all material latest additions (S) acc to  ASME/ASTM (Equivalent Not Accepted)

Each flange  shall be legibly marked with the following :

-manufacture name

-heat no

- material (ASTM DESIGNATION&GRADE/TP).

12

2

PCS

SIZE : 8 “    SCH : 160  CLASS 150

13

2

PCS

SIZE : 6 “    SCH : 160  CLASS 300







SEAMLESS COUPLING

Material to  ASTM uns no.71500

-Dimensions acc to Ansi B 16.11

-Threaded  acc to Ansi B 1.20.1

-all material shall be latest edition (EQUIVELENT NOT ACCEPTED)

Each COUPLING  shall be legibly marked with the following :

-manufacture name

-heat no

- Material ( ASTM Gr/Tp)

-Dimension

14

4

PCS

SIZE : ¾”    CLASS 6000  TYPE : threaded

15

4

PCS

SIZE : 1 “    CLASS 6000  TYPE : threaded







(SEAMLESS ELBOW )

(Material to  ASTM  A 234  WPB + 3 mm  clad with uns C71500

-Dimensions acc to Ansi B 16.9

-end of elbows must be beveled acc to ansi b16.25.

Each elbow  shall be legibly marked with the following :

-manufacture name

-heat no

-size & sch

-material (ASTM Designation &Grade/Tp).

-inspection certificate in accordance with en 10204-3.1 shall be supported for all material &origin certificate legalized.

- euro 1  is require for European origin.

- should be supplied in worthy package to avoid any distortion.

16

1

PC

SIZE : 8 “    SCH : 80  TYPE :  90 L.R

17

1

PC

SIZE : 6 “    SCH : 80  TYPE :  90 L.R







Raised Face Blind  flanges

Material to  ASTM B 432

 (ASTM A516 Gr 60 + 3 mm clad with B171  uns no.71500)



-all material LATEST ADDITIONS (S) l acc to  ASME/ASTM (Equivalent NoT Accepted)

Each flange  shall be legibly marked with the following :

-manufacture name

-heat no

-material (ASTM DESIGNATION&GRADE/TP)

-inspection certificate in accordance with EN 10204-3.1 shall be supported for all material &origin certificate Legalized.

- euro 1  is require for European origin.

- should be supplied in worthy package to avoid any distortion.

18

1

PC

AS ATTACHED DRAWING 7

16

1

PC

AS ATTACHED DRAWING  8

20

1

PC

AS ATTACHED DRAWING  9







(SEAMLESS PIPE )

(Material to  ASTM A106 Gr B + 3 mm weld deposited

for 1st pass eni-1&other  ENI CU7



-PIPES MUST BE SUBMITTED IN (ONE PIECE)

-DIEMINSIONS ACC TO ANSI B36.10

Beveled END acc to ansi b16.25.

-END OF PIPES MUST BE PLUGGED PLASTIC CAPS FOR PROTECTIONS.

Each PIPE  shall be legibly marked with the following :

-manufacture name

-heat no

-material (ASTM DESIGNATION&GRADE/TP).

-all material LATEST ADDITIONS (S) l acc to  ASME/ASTM (Equivalent NoT Accepted)

-inspection certificate in accordance with EN 10204-3.1 shall be supported for all material &origin certificate Legalized.

- euro 1  is require for European origin.

21

1

PCS

SIZE : 6 “      OD :  6.625”    Wall Thickness  :  0.432  sch: 80  length : S.R.L

22

1

PCS

SIZE : 8 “      OD :  8.625”    Wall Thickness  :  0.918  sch: 160  length : S.R.L











Closing date  1/12/2022
